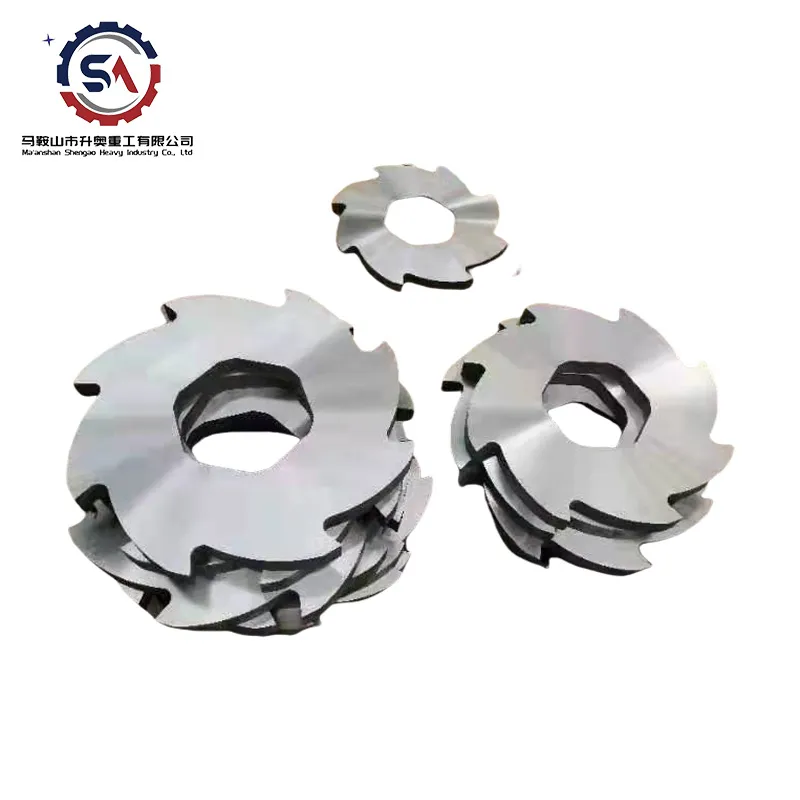

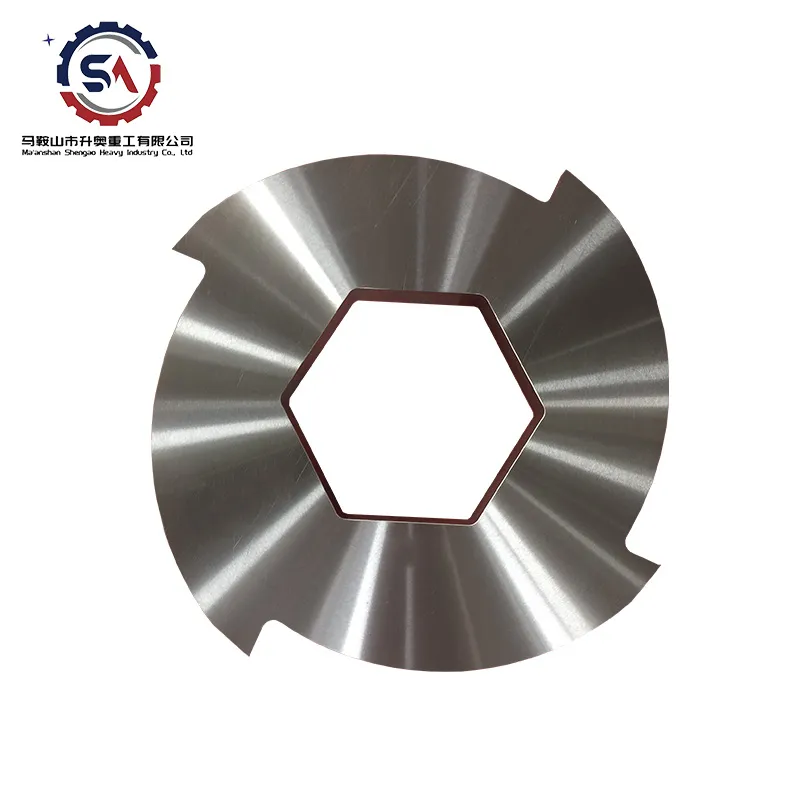

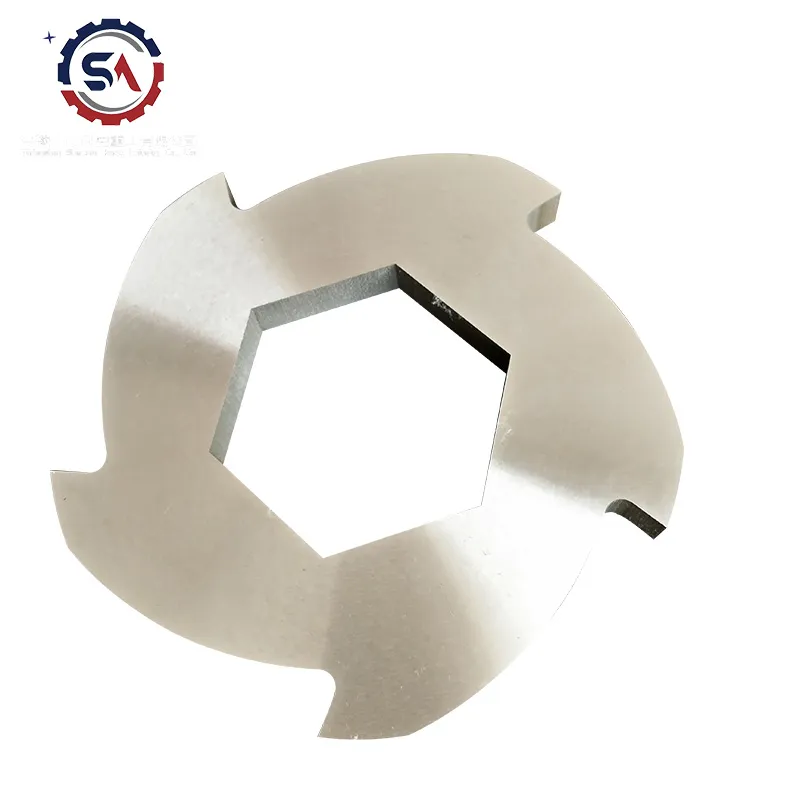

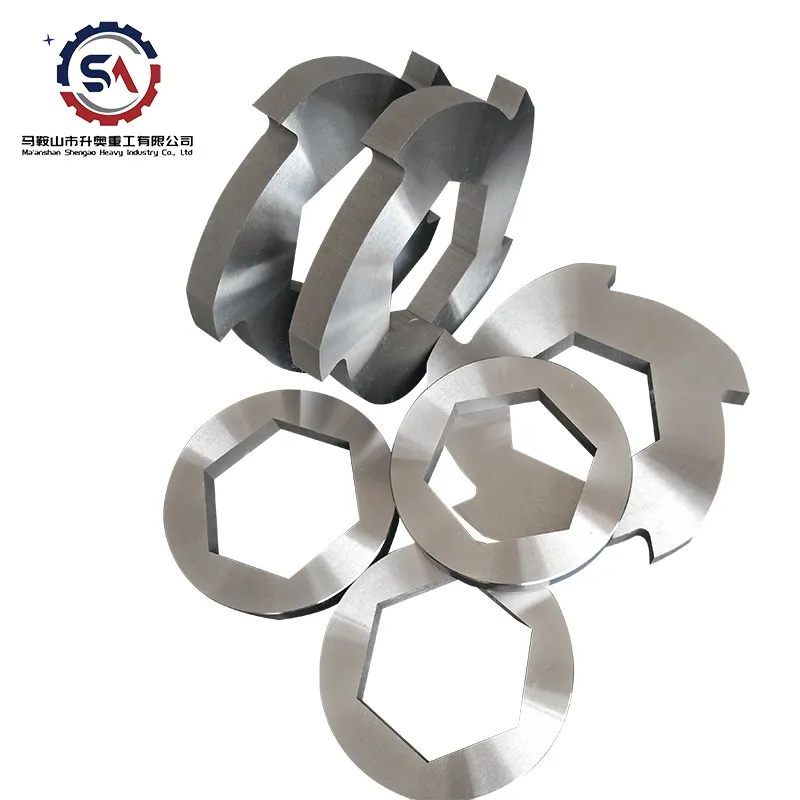

Double Shaft Shredder Blade
Multi-shaft shredder blades, also known as claw blades, are designed to be installed on dual-shaft or four-shaft shredders, based on various companies’ designs. They are typically categorized into 3-claw, 8-claw, and 12-claw shredder blades, and are used for crushing, tearing, and compressing materials to reduce their size. These blades are applied to the shredding of waste plastics, rubber, wood, and other large-volume materials.
Blade Specifications
Material Options:
- D2 Steel (High-Carbon, High-Chromium Tool Steel): Known for its high hardness and excellent wear resistance.
- SKD11 (Japanese Standard Tool Steel): Offers superior toughness and longevity.
- H13 tool steel is a widely used hot work tool steel known for its excellent combination of high toughness, good wear resistance, and ability to withstand high temperatures.
Hardness:
- Achieved through heat treatment to a range of HRC 58-62 for optimal balance between hardness and toughness.
Dimensions:
- Diameter: Customizable from 180 mm to 800 mm.
- Inner Diameter: Ranges between 60 mm and 300 mm.
- Thickness: Options available from 10 mm to 50 mm.
- Weight: Varies based on dimensions and material, typically ranging from 1 kg to 5 kg per blade.
- Edge Type: Single bevel, straight edge, designed for precision and consistent cutting performance.
| Dimensions (mm)L*W*H | Crushing Chamber Size (mm) | Blade Diameter (mm) | Blade Thickness (mm) | Number of Blades | Power (kw) | Weight (kg) | |
| SZ – 500 | 2800x1300x1850 | 500×480 | 200 | 20 | 24 | 11×2 | 2200 |
| SZ – 800 | 3000x1300x1850 | 800×480 | 200 | 20 | 40 | 22×2 | 2500 |
| SZ – 1000 | 3300x1900x2200 | 1000×690 | 300 | 40 | 24 | 30×2 | 5200 |
| SZ – 1200 | 3600x2000x2200 | 1200×690 | 300 | 40 | 30 | 37×2 | 6400 |
| SZ – 1500 | 4180x2100x2400 | 1500×850 | 550 | 50/75 | 30/20 | 45×2 | 9000 |
| SZ – 1800 | 5800x2400x3300 | 1800×1206 | 550 | 50/75 | 36/24 | 55×2 | 13600 |
| SZ – 2000 | 6400x2700x3500 | 2000×1490 | 600 | 50/75 | 40/26 | 90×2 | 20100 |
| SZ – 2500 | 7500x3200x3800 | 2500×1800 | 600 | 75/100 | 32/24 | 110×2 | 25000 |
| SZ – 3000 | 8600x3500x4000 | 3000×1800 | 600 | 75/100 | 40/30 | 132×2 | 31000 |
| Note: 1. The number of blade teeth, diameter, and thickness can be customized based on the type of material and discharge size. 2. Different types of materials and discharge sizes will also result in varying equipment output. | |||||||
| Model | Tool Specifications | Power | Number of Blades | Gearbox | Rotational Speed (r/min) | Dimensions (m) |
| 600 | Φ200*10 | 15kw | 48 | 400 | 18-25 | 1.45*0.84*2.2 |
| Φ200*20 | 15kw | 24 | 400 | 18-25 | 1.45*0.84*2.2 | |
| 800 | Φ200*20 | 15kw*2 | 32 | 400*2 | 18-25 | 2.15*0.87*2.2 |
| Φ300*30 | 30kw*2 | 18 | 650*2 | 18-25 | 3.4*1.2*2.2 | |
| 1000 | Φ300*25 | 30kw*2 | 32 | 650*2 | 18-25 | 3.4*1.25*2.2 |
| Φ300*30 | 30kw*2 | 27 | 650*2 | 18-25 | 3.4*1.25*2.2 | |
| Φ400*40 | 45kw*2 | 20 | 750*2 | 18-25 | 3.4*1.25*2.2 | |
| 1200 | Φ400*30 | 55kw*2 | 38 | 650*2 | 18-25 | 4.15*1.25*2.2 |
| Φ400*40 | 55kw*2 | 28 | 750*2 | 18-25 | 4.15*1.25*2.2 | |
| 1500 | Φ400*30 | 75kw*2 | 48 | 750*2 | 18-25 | 4.15*1.25*2.2 |
| Φ400*40 | 75kw*2 | 36 | 750*2 | 18-25 | 4.15*1.25*2.2 | |
| Φ400*50 | 75kw*2 | 28 | 850*2 | 18-25 | 4.15*1.25*2.2 | |
| 2000 | Φ530*50 | 90kw*2 | 38 | 850*2 | 18-30 | 5.25*1.78*2.2 |
| Φ600*60 | 90kw*2 | 31 | 850*2 | 18-30 | 5.25*1.78*2.2 |
Applications of Double Shaft Shredder
Design Features
Cutting Edge:
- Precision-ground single bevel edge ensures efficient shredding and extended blade life.
Internal Structure:
- Optimized through Finite Element Analysis (FEA) to ensure strength and minimize stress points.
- Reinforced sections to handle high-impact forces and resist deformation.
Surface Finish:
- Polished surface with anti-corrosion coating for improved longevity in harsh environments.
Mainly suitable for crushing various plastic products
Shredding Effect List
Application
- Plastic
- Metals
- Wood
- Paper
- Rubber
Performance and Testing
Cutting Efficiency:
- Designed for high throughput with minimal downtime, maintaining sharpness over prolonged use.
Durability Testing:
- Underwent rigorous impact and wear tests to ensure long-lasting performance.
Stress Analysis：
- Conducted FEA to validate structural integrity under high-load conditions, ensuring the blades withstand the toughest applications.
Packaging & Shipment
Contact us now
- High-quality materials
- Customized solutions
- Professional manufacturing processes
- Technical support and after-sales service
