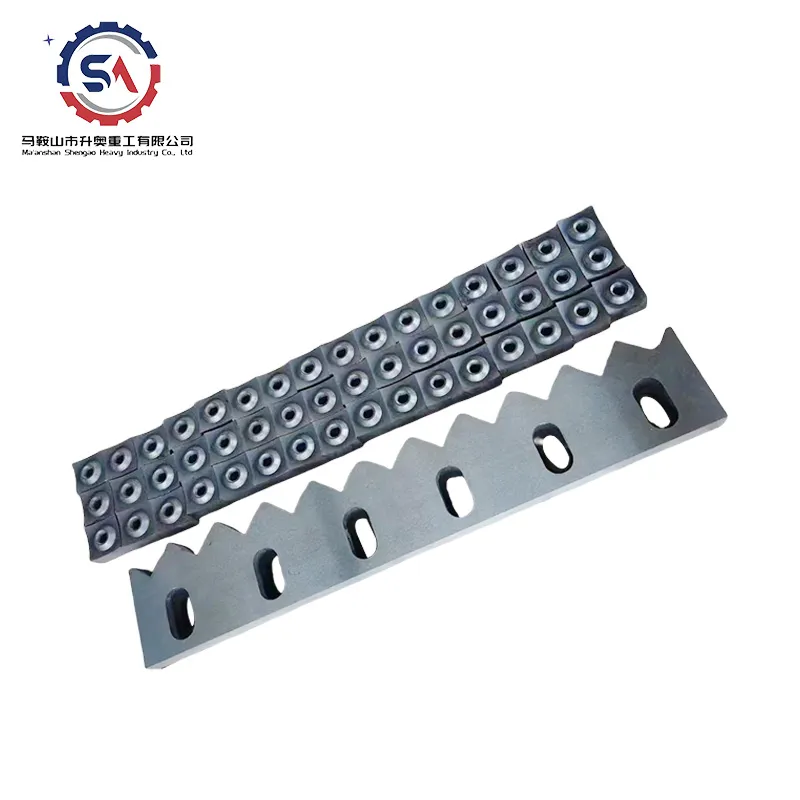

Single-Shaft Shredder Blades
Single-shaft shredder blades are used for processing materials such as wooden blocks, old fixtures, rubber, and plastics. Common sizes for single-shaft shredder blades are 60x60x30 mm and 40x40x25 mm, with a rounded (R-shaped) cutting surface. The blades feature either convex or flat holes in the center, and typically, single-shaft shredder blades have four cutting tips.
Material
- Cr12mov, SKD11, D2, Dc53, Ld, etc. The surface can be coated to improve the wear resistance of the blade and extend the service life of the blade. The main coating element is: Ti (titanium) with a golden color.
- The hardness of the single-axis shredder blade is generally controlled at HRC59-62.
- Heat treatment: Often undergo heat treatment to enhance hardness and durability.
Design
- Single shaft: Mounted on a single rotating shaft.
- Multiple blades: Typically, multiple blades are arranged along the shaft, each designed to cut or shred the material.
- Counter knives: Work in conjunction with stationary counter knives to create a cutting action.
Shape and Size
- Variety of shapes: Can be rectangular, square, or customized to specific applications.
- Size: Varies depending on the shredder model and the type of material being processed.
| Dimensions (mm)L*W*H | Crushing Chamber Size (mm) | Blade Diameter (mm) | Blade Thickness (mm) | Number of Blades | Power (kw) | Weight (kg) | |
| SZ – 500 | 2800x1300x1850 | 500×480 | 200 | 20 | 24 | 11×2 | 2200 |
| SZ – 800 | 3000x1300x1850 | 800×480 | 200 | 20 | 40 | 22×2 | 2500 |
| SZ – 1000 | 3300x1900x2200 | 1000×690 | 300 | 40 | 24 | 30×2 | 5200 |
| SZ – 1200 | 3600x2000x2200 | 1200×690 | 300 | 40 | 30 | 37×2 | 6400 |
| SZ – 1500 | 4180x2100x2400 | 1500×850 | 550 | 50/75 | 30/20 | 45×2 | 9000 |
| SZ – 1800 | 5800x2400x3300 | 1800×1206 | 550 | 50/75 | 36/24 | 55×2 | 13600 |
| SZ – 2000 | 6400x2700x3500 | 2000×1490 | 600 | 50/75 | 40/26 | 90×2 | 20100 |
| SZ – 2500 | 7500x3200x3800 | 2500×1800 | 600 | 75/100 | 32/24 | 110×2 | 25000 |
| SZ – 3000 | 8600x3500x4000 | 3000×1800 | 600 | 75/100 | 40/30 | 132×2 | 31000 |
| Note: 1. The number of blade teeth, diameter, and thickness can be customized based on the type of material and discharge size. 2. Different types of materials and discharge sizes will also result in varying equipment output. | |||||||
| Model | Tool Specifications | Power | Number of Blades | Gearbox | Rotational Speed (r/min) | Dimensions (m) |
| 600 | Φ200*10 | 15kw | 48 | 400 | 18-25 | 1.45*0.84*2.2 |
| Φ200*20 | 15kw | 24 | 400 | 18-25 | 1.45*0.84*2.2 | |
| 800 | Φ200*20 | 15kw*2 | 32 | 400*2 | 18-25 | 2.15*0.87*2.2 |
| Φ300*30 | 30kw*2 | 18 | 650*2 | 18-25 | 3.4*1.2*2.2 | |
| 1000 | Φ300*25 | 30kw*2 | 32 | 650*2 | 18-25 | 3.4*1.25*2.2 |
| Φ300*30 | 30kw*2 | 27 | 650*2 | 18-25 | 3.4*1.25*2.2 | |
| Φ400*40 | 45kw*2 | 20 | 750*2 | 18-25 | 3.4*1.25*2.2 | |
| 1200 | Φ400*30 | 55kw*2 | 38 | 650*2 | 18-25 | 4.15*1.25*2.2 |
| Φ400*40 | 55kw*2 | 28 | 750*2 | 18-25 | 4.15*1.25*2.2 | |
| 1500 | Φ400*30 | 75kw*2 | 48 | 750*2 | 18-25 | 4.15*1.25*2.2 |
| Φ400*40 | 75kw*2 | 36 | 750*2 | 18-25 | 4.15*1.25*2.2 | |
| Φ400*50 | 75kw*2 | 28 | 850*2 | 18-25 | 4.15*1.25*2.2 | |
| 2000 | Φ530*50 | 90kw*2 | 38 | 850*2 | 18-30 | 5.25*1.78*2.2 |
| Φ600*60 | 90kw*2 | 31 | 850*2 | 18-30 | 5.25*1.78*2.2 |
Applications of Single Shaft Shredder
Benefits
Efficiency
High-quality blades ensure efficient shredding, reducing processing time.
Durability
Durable materials and proper maintenance extend the lifespan of the blades.
Versatility
Can handle a wide range of materials, making them suitable for various industries.
Mainly suitable for crushing various plastic products
Shredding Effect List
Application
- Plastic recycling
- Wood processing
- Metal recycling
- Waste management

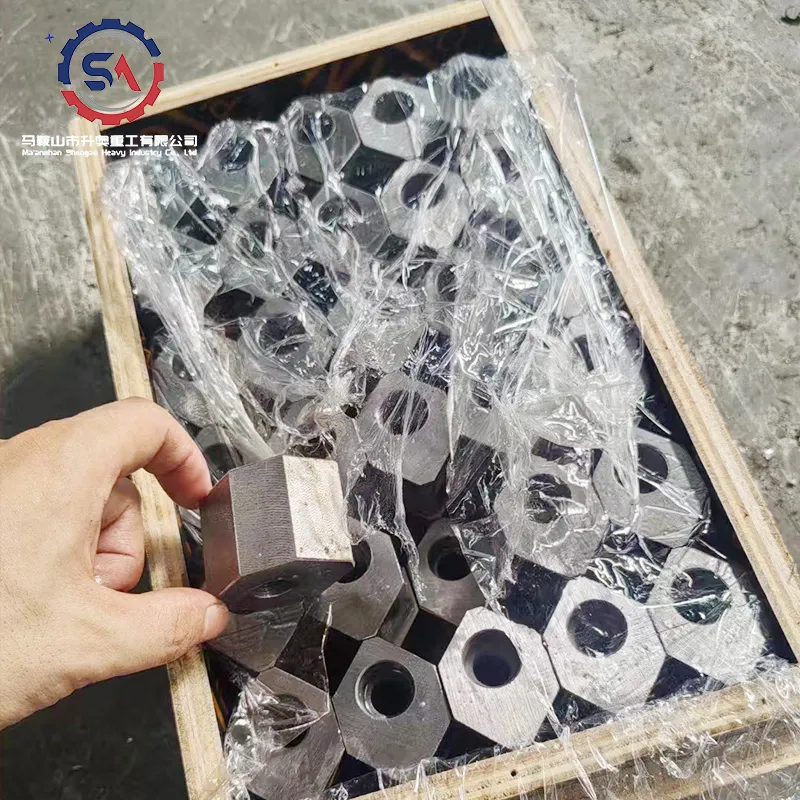

Packaging & Shipment
Contact us now
- High-quality materials
- Customized solutions
- Professional manufacturing processes
- Technical support and after-sales service
