Material handling comparison
| Dimensions (mm)L*W*H | Crushing Chamber Size (mm) | Blade Diameter (mm) | Blade Thickness (mm) | Number of Blades | Power (kw) | Weight (kg) | |
| SZ – 500 | 2800x1300x1850 | 500×480 | 200 | 20 | 24 | 11×2 | 2200 |
| SZ – 800 | 3000x1300x1850 | 800×480 | 200 | 20 | 40 | 22×2 | 2500 |
| SZ – 1000 | 3300x1900x2200 | 1000×690 | 300 | 40 | 24 | 30×2 | 5200 |
| SZ – 1200 | 3600x2000x2200 | 1200×690 | 300 | 40 | 30 | 37×2 | 6400 |
| SZ – 1500 | 4180x2100x2400 | 1500×850 | 550 | 50/75 | 30/20 | 45×2 | 9000 |
| SZ – 1800 | 5800x2400x3300 | 1800×1206 | 550 | 50/75 | 36/24 | 55×2 | 13600 |
| SZ – 2000 | 6400x2700x3500 | 2000×1490 | 600 | 50/75 | 40/26 | 90×2 | 20100 |
| SZ – 2500 | 7500x3200x3800 | 2500×1800 | 600 | 75/100 | 32/24 | 110×2 | 25000 |
| SZ – 3000 | 8600x3500x4000 | 3000×1800 | 600 | 75/100 | 40/30 | 132×2 | 31000 |
| Note: 1. The number of blade teeth, diameter, and thickness can be customized based on the type of material and discharge size. 2. Different types of materials and discharge sizes will also result in varying equipment output. | |||||||
| Model | Tool Specifications | Power | Number of Blades | Gearbox | Rotational Speed (r/min) | Dimensions (m) |
| 600 | Φ200*10 | 15kw | 48 | 400 | 18-25 | 1.45*0.84*2.2 |
| Φ200*20 | 15kw | 24 | 400 | 18-25 | 1.45*0.84*2.2 | |
| 800 | Φ200*20 | 15kw*2 | 32 | 400*2 | 18-25 | 2.15*0.87*2.2 |
| Φ300*30 | 30kw*2 | 18 | 650*2 | 18-25 | 3.4*1.2*2.2 | |
| 1000 | Φ300*25 | 30kw*2 | 32 | 650*2 | 18-25 | 3.4*1.25*2.2 |
| Φ300*30 | 30kw*2 | 27 | 650*2 | 18-25 | 3.4*1.25*2.2 | |
| Φ400*40 | 45kw*2 | 20 | 750*2 | 18-25 | 3.4*1.25*2.2 | |
| 1200 | Φ400*30 | 55kw*2 | 38 | 650*2 | 18-25 | 4.15*1.25*2.2 |
| Φ400*40 | 55kw*2 | 28 | 750*2 | 18-25 | 4.15*1.25*2.2 | |
| 1500 | Φ400*30 | 75kw*2 | 48 | 750*2 | 18-25 | 4.15*1.25*2.2 |
| Φ400*40 | 75kw*2 | 36 | 750*2 | 18-25 | 4.15*1.25*2.2 | |
| Φ400*50 | 75kw*2 | 28 | 850*2 | 18-25 | 4.15*1.25*2.2 | |
| 2000 | Φ530*50 | 90kw*2 | 38 | 850*2 | 18-30 | 5.25*1.78*2.2 |
| Φ600*60 | 90kw*2 | 31 | 850*2 | 18-30 | 5.25*1.78*2.2 |

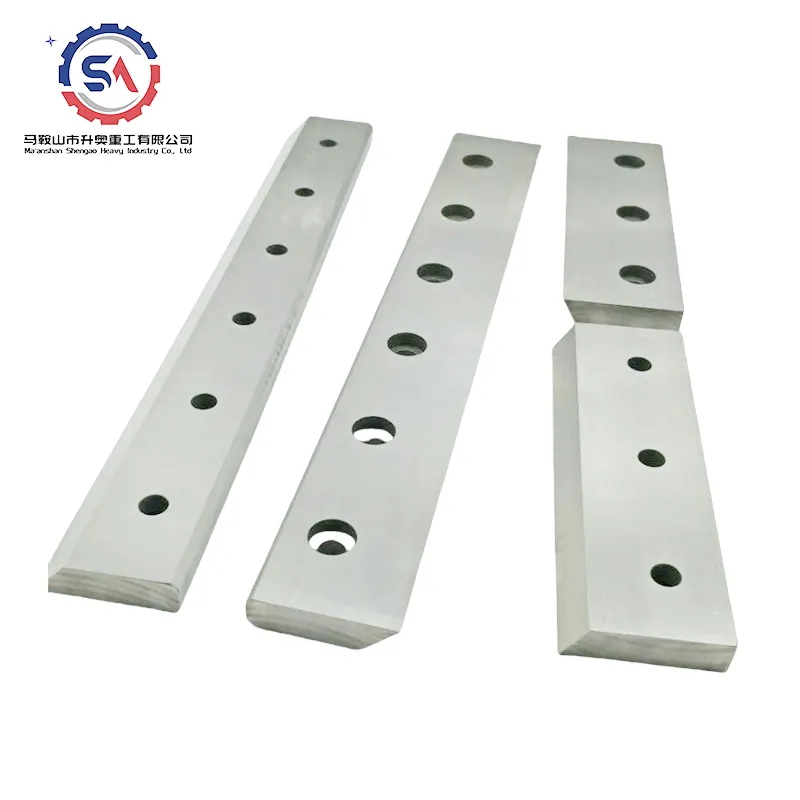

Material of pulverizer blade
High carbon steel
Features: high hardness and good wear resistance.
Application: suitable for general plastics, rubber and other materials.
Alloy steel
Features: high hardness, good toughness, wear resistance and corrosion resistance.
Application: suitable for harder materials such as metal, wood, etc.
Stainless steel
Features: strong corrosion resistance and moderate hardness.
Application: suitable for industries with high hygiene requirements such as food and medicine.
Packaging & Shipment
Contact us now
- High-quality materials
- Customized solutions
- Professional manufacturing processes
- Technical support and after-sales service
