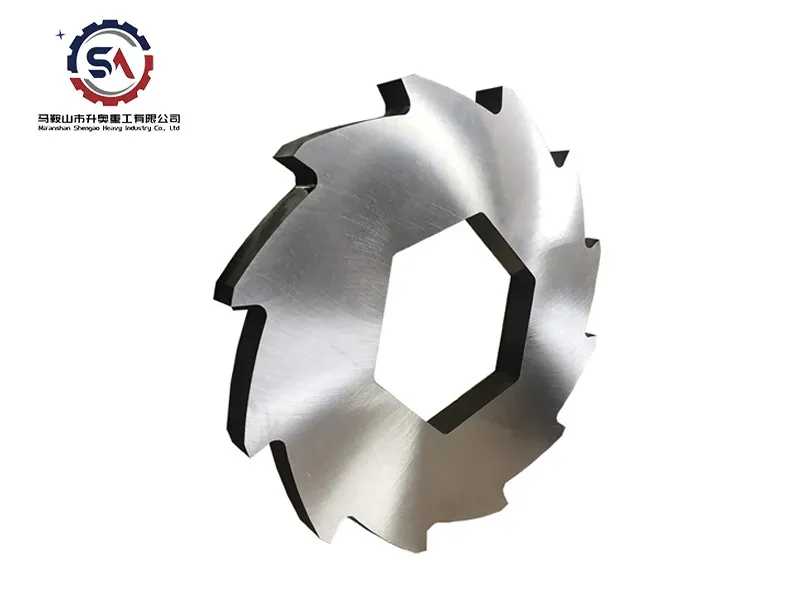

Tire Shredder Blades

Tire shredder blades are cutting tools designed specifically for precise cutting and shaping of tires. These blades are essential components in industries that use rubber compounds, sheets, molded plastics, and other synthetic materials.

Material: Tire shredder blades are typically made from materials that have the durability, wear resistance, and sharpness required to cut tough materials. Common blade materials include high-speed steel (HSS), tool steel, carbide, and tungsten carbide.

Blade Specifications

Material Options:

D2 Steel (High-Carbon, High-Chromium Tool Steel): Known for its high hardness and excellent wear resistance.
SKD11 (Japanese Standard Tool Steel): Offers superior toughness and longevity.
H13 tool steel is a widely used hot work tool steel known for its excellent combination of high toughness, good wear resistance, and ability to withstand high temperatures.

Hardness:

Achieved through heat treatment to a range of HRC 58-62 for optimal balance between hardness and toughness.

Dimensions:

Diameter: Customizable from 180 mm to 800 mm.
Inner Diameter: Ranges between 60 mm and 300 mm.
Thickness: Options available from 10 mm to 50 mm.
Weight: Varies based on dimensions and material, typically ranging from 1 kg to 5 kg per blade.
Edge Type: Single bevel, straight edge, designed for precision and consistent cutting performance.

	Dimensions (mm)LWH	Crushing Chamber Size (mm)	Blade Diameter (mm)	Blade Thickness (mm)	Number of Blades	Power (kw)	Weight (kg)
SZ – 500	2800x1300x1850	500×480	200	20	24	11×2	2200
SZ – 800	3000x1300x1850	800×480	200	20	40	22×2	2500
SZ – 1000	3300x1900x2200	1000×690	300	40	24	30×2	5200
SZ – 1200	3600x2000x2200	1200×690	300	40	30	37×2	6400
SZ – 1500	4180x2100x2400	1500×850	550	50/75	30/20	45×2	9000
SZ – 1800	5800x2400x3300	1800×1206	550	50/75	36/24	55×2	13600
SZ – 2000	6400x2700x3500	2000×1490	600	50/75	40/26	90×2	20100
SZ – 2500	7500x3200x3800	2500×1800	600	75/100	32/24	110×2	25000
SZ – 3000	8600x3500x4000	3000×1800	600	75/100	40/30	132×2	31000
Note: 1. The number of blade teeth, diameter, and thickness can be customized based on the type of material and discharge size. 2. Different types of materials and discharge sizes will also result in varying equipment output.

Model	Tool Specifications	Power	Number of Blades	Gearbox	Rotational Speed (r/min)	Dimensions (m)
600	Φ200*10	15kw	48	400	18-25	1.450.842.2
600	Φ200*20	15kw	24	400	18-25	1.450.842.2
800	Φ200*20	15kw*2	32	400*2	18-25	2.150.872.2
800	Φ300*30	30kw*2	18	650*2	18-25	3.41.22.2
1000	Φ300*25	30kw*2	32	650*2	18-25	3.41.252.2
	Φ300*30	30kw*2	27	650*2	18-25	3.41.252.2
	Φ400*40	45kw*2	20	750*2	18-25	3.41.252.2
1200	Φ400*30	55kw*2	38	650*2	18-25	4.151.252.2
1200	Φ400*40	55kw*2	28	750*2	18-25	4.151.252.2
1500	Φ400*30	75kw*2	48	750*2	18-25	4.151.252.2
	Φ400*40	75kw*2	36	750*2	18-25	4.151.252.2
	Φ400*50	75kw*2	28	850*2	18-25	4.151.252.2
2000	Φ530*50	90kw*2	38	850*2	18-30	5.251.782.2
2000	Φ600*60	90kw*2	31	850*2	18-30	5.251.782.2

Design Features

Cutting Edge:

Precision-ground single bevel edge ensures efficient shredding and extended blade life.

Internal Structure:

Optimized through Finite Element Analysis (FEA) to ensure strength and minimize stress points.
Reinforced sections to handle high-impact forces and resist deformation.

Surface Finish:
